HERO HONDA Ignitor - jeet Ki Chingaari
Features :
New Generation 125 cc ATFT engine
Striking trapezoidal headlight
Digital-Analog Combo Meter Console
Stylish Split Seat

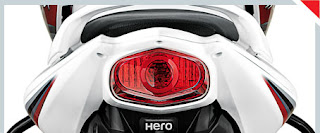

Dazzling Tail Light
Dual Tone Rear View Mirrors
Classy Front Cowl
Adjustable Rear Shockers
Body-coloured Rear Grip
TECHNICAL SPECIFICATIONS
| Engine | |
| Type | Air cooled , 4 - stroke single cylinder OHC |
| Displacement | 124.7 cc |
| Max. Power | 8.20 kW ( 11 bhp ) @ 8000 rpm |
| Max. Torque | 11 N-m @ 5000 rpm |
| Bore x Stroke | 52.4 x 57.8 mm |
| Carburettor | CV Type |
| Compression Ratio | 9.2 :1 |
| Starting | Self Start / Kick Start |
| Ignition | Digital CDI |
| Transmission & Chassis | |
| Clutch | Multiplate wet |
| Gear box | 5 Speed constant mesh |
| Chassis Type | Tubular , Diamond Type |
| Suspension | |
| Front | Telescopic Hydraulic Shock Absorbers |
| Rear | Swing Arm with adjustable hydraulic shock absorbers |
| Brakes | |
| Front Brake | Dia 240 mm Disc - Non Asbestos type |
| Rear Brake | Internal expanding shoe type ( 130 mm ) - Non Asbestos type |
| Wheels & Tyres | |
| Rim Size Front | 17 x 1.85, Cast Wheel |
| Rim Size Rear | 17 x 2.15, Cast Wheel |
| Tyre Size Front | 80/100 x 17 - M/C 46 P ( Tubeless Tyre ) |
| Tyre Size Rear | 100/90 x 17 - M/C 55P ( Tubeless Tyre ) |
| Electricals | |
| Battery | 12 V - 3 Ah , MF Battery |
| Head Light | 35 W / 35 W - Halogen Bulb ( Multi-Reflector ) |
| Tail Stop Lamp | 5 W / 21 W ( Multi-Reflector ) |
| Turn Signal Lamp | 10 W x 4 nos ( Multi- Reflector ) |
| Dimensions | |
| Length | 2010 mm |
| Width | 710 mm |
| Height | 1095 mm |
| Wheelbase | 1270 mm |
| Ground Clearance | 175 mm |
| Kerb Weight | 129 kg |
SERVICE
FREE SERVICE SCHEDULE
1st Free Service:
500 – 750 Kms. Or 60 days from the date of purchase, whichever is earlier.
2nd Free Service:
3000 – 3500 Kms. Or 100 days from the date of previous service, whichever is earlier.
3rd Free Service:
6000 – 6500 Kms. Or 100 days from the date of previous service, whichever is earlier.
4th Free Service:
9000 – 9500 Kms. Or 100 days from the date of previous service, whichever is earlier.
5th Free Service:
12000 – 12500 Kms. Or 100 days from the date of previous service, whichever is earlier.
6th Free Service:
15000 – 15500 Kms. Or 100 days from the date of previous service, whichever is earlier.
500 – 750 Kms. Or 60 days from the date of purchase, whichever is earlier.
2nd Free Service:
3000 – 3500 Kms. Or 100 days from the date of previous service, whichever is earlier.
3rd Free Service:
6000 – 6500 Kms. Or 100 days from the date of previous service, whichever is earlier.
4th Free Service:
9000 – 9500 Kms. Or 100 days from the date of previous service, whichever is earlier.
5th Free Service:
12000 – 12500 Kms. Or 100 days from the date of previous service, whichever is earlier.
6th Free Service:
15000 – 15500 Kms. Or 100 days from the date of previous service, whichever is earlier.
Prices
| ExShowroom | On Road | |
|---|---|---|
| DRS |  56,200 |
61,611 |
| DSS | 58,200 |
63,764 |
