Hero Honda -karizmazmr
Features :
Multi-functional digital console with blue illumination and personalized message.
Sporty full body cowl with body coloured rear view mirrors.
Astra gold front and rear disc brake.

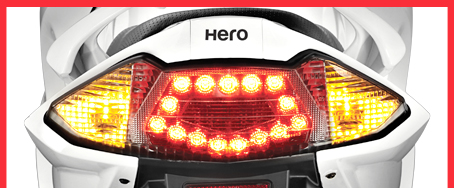

Dazzling integrated LED tail light.
Technical Specification
| Engine | |
| Type | Liquid Cooled, 4 - stroke single cylinder OHC, fuel injection |
| Displacement | 223 cc |
| Max. Power | 13.15 kW (17.6 bhp) @ 7000rpm |
| Max. Torque | 18.35 N m @ 6000 rpm |
| Acceleration | 0-60 kmph in 3.7 sec |
| Bore x Stroke | 65.5 x 66.2 mm |
| Compression Ratio | 9.0 : 1 |
| Starting | Self Start |
| Ignition | DC – FTIS (Full Transistorised Ignition System) |
| Engine oil grade | SAE 10 W 30 SJ grade (JASO MA Grade) |
| Transmission & Chassis | |
| Clutch | Multi-plate wet |
| Gear box | 5 Speed constant mesh |
| Chassis Type | Diamond Frame |
| Suspension | |
| Front | Telescopic hydraulic shock absorbers |
| Rear | Swing arm with 5 step adjustable IGRS system |
| Brakes | |
| Front Brake | Disc, Dia 276 mm |
| Rear Brake Disc | Disc Dia 240 mm |
| Wheels & Tyres | |
| Rim Size Front | 18 x 1.85, 5 Spoke cast wheel |
| Rim Size Rear | 18 x 2.15, 5 Spoke cast wheel |
| Tyre Size Front | 80 / 100 x 18 – 47 P tubeless |
| Tyre Size Rear | 100 / 90 x 18 – 56 P tubeless |
| Electricals | |
| Battery | 12 V -6 Ah, MF – Wet battery |
| Head Light | 12 V -35 W / 35W - Halogen bulb (Multi – reflector D.C type) |
| Position Lamp | 12 V – 5 W X 2 nos. |
| Tail Stop Lamp | 12 V -0.5 W / 4.1W LED lamp |
| Turn Signal Lamp | 12 V -21 W (Amber bulb) x 4 nos. (Multi – reflector clear lens) |
| Dimensions | |
| Length | 2110 mm |
| Width | 805 mm |
| Height | 1175 mm |
| Wheelbase | 1350 mm |
| Ground Clearance | 159 mm |
| Kerb Weight | 159 kgs |
| Minimum Turning | 2.50 metre |
SERVICE
FREE SERVICE SCHEDULE
1st Free Service:
500 – 750 Kms. Or 60 days from the date of purchase, whichever is earlier 2nd Free Service: 3000 – 3500 Kms. Or 100 days from the date of previous service, whichever is earlier 3rd Free Service: 6000 – 6500 Kms. Or 100 days from the date of previous service, whichever is earlier 4th Free Service: 9000 – 9500 Kms. Or 100 days from the date of previous service, whichever is earlier 5th Free Service: 12000 – 12500 Kms. Or 100 days from the date of previous service, whichever is earlier 6th Free Service: 15000 – 15500 Kms. Or 100 days from the date of previous service, whichever is earlier Prices
|
98,800
